IN STOCK & READY TO SHIP FROM CHEVALIER

CONTACT MTD FOR SPECIAL PROMO PRICES ON THESE MODELS!


VMCS

EM-2033L $62,500

HP: 20

RPM: 10,000

Travel: 33.5” x 20” X 20”

Control: Fanuc Oi MF

Accessories & Options: CT40, 24 ATC, internal chips auger, big plus spindle



FVM-3016DCL II $314,000

HP: 35

RPM: 6,000 (2-speed gear)

Travel: 122” x 63” X 30.7”

Control: Fanuc Oi MF Mold Package

Accessories & Options: CT50, chip augers, conveyor, full splash guards, 24 ATC, Fanuc Mold Package

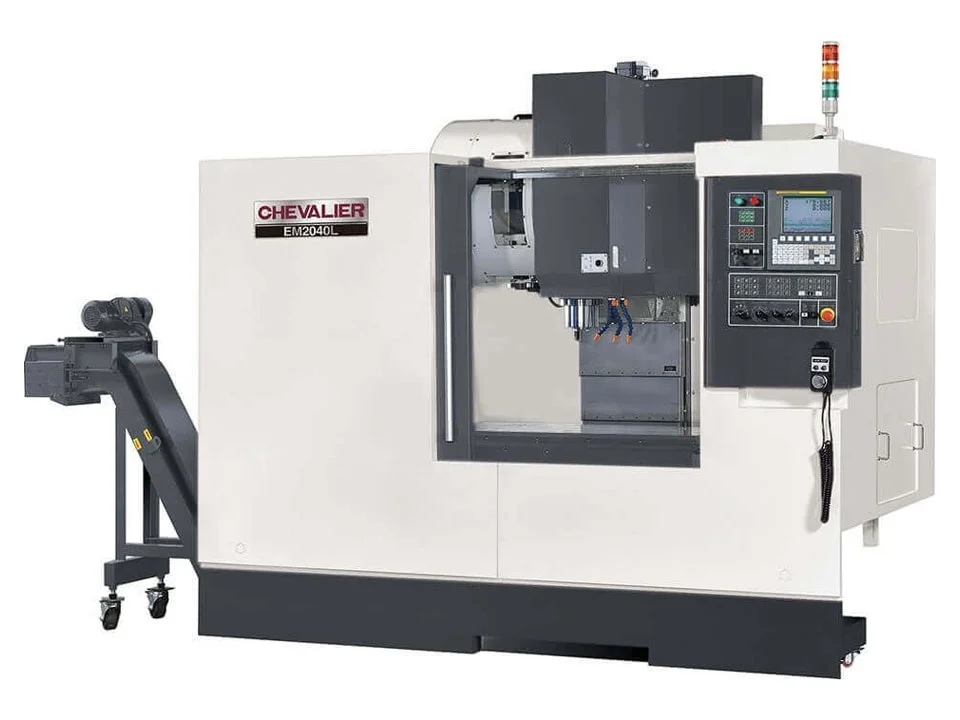

EM-2040L $65,900

HP: 20

RPM: 10,000

Travel: 40” x 20” X 20”

Control: Fanuc Oi MF

Accessories & Options: CT40, 24 ATC, internal chips auger, big plus spindle



Uni5X-400 $154,800

HP: 20

RPM: 12,000

Machining Capacity: 15.7 X 13.7” H

Control: Fanuc Oi MF Mold Package

Accessories & Options: CT40, big plus spindle, roller way, 30 ATC, chips flush, spindle oil chiller, internal chip augers, chip conveyor, CTS prep, Fanuc Mold package

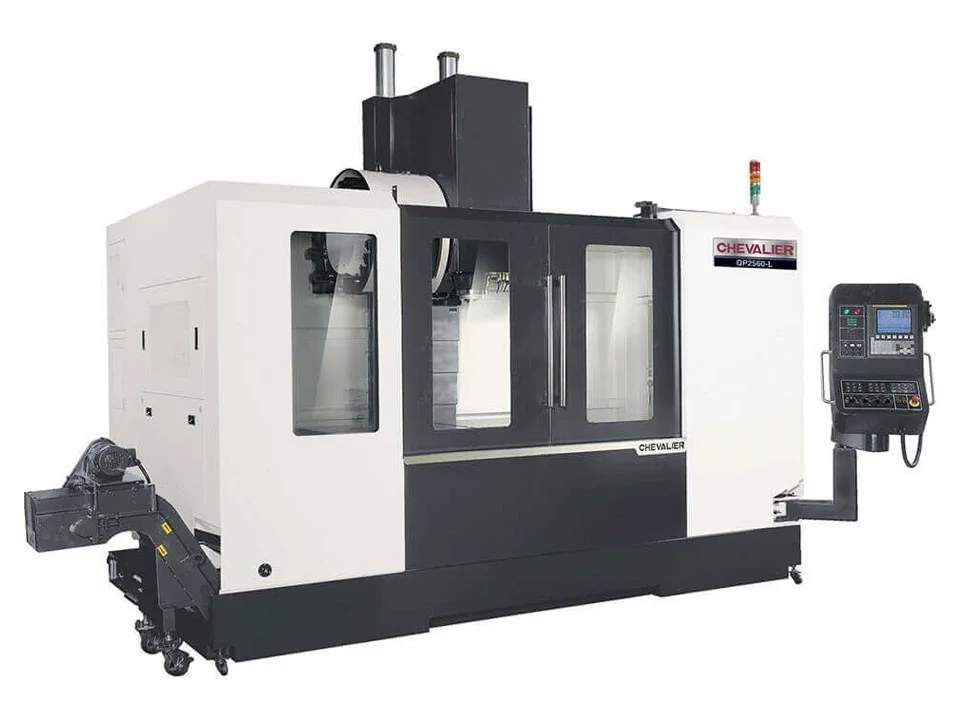

QP-2560L $125,900

HP: 20

RPM: 10,000

Travel: 60” x 25” X 25”

Control: Fanuc Oi MF Mold Package

Accessories & Options: CT40, 24 ATC, big plus spindle, CTS prep, 4th axis prep, oil skimmer, chips flush, lift up chips conveyor, (2) internal chip augers, Fanuc Mold Package

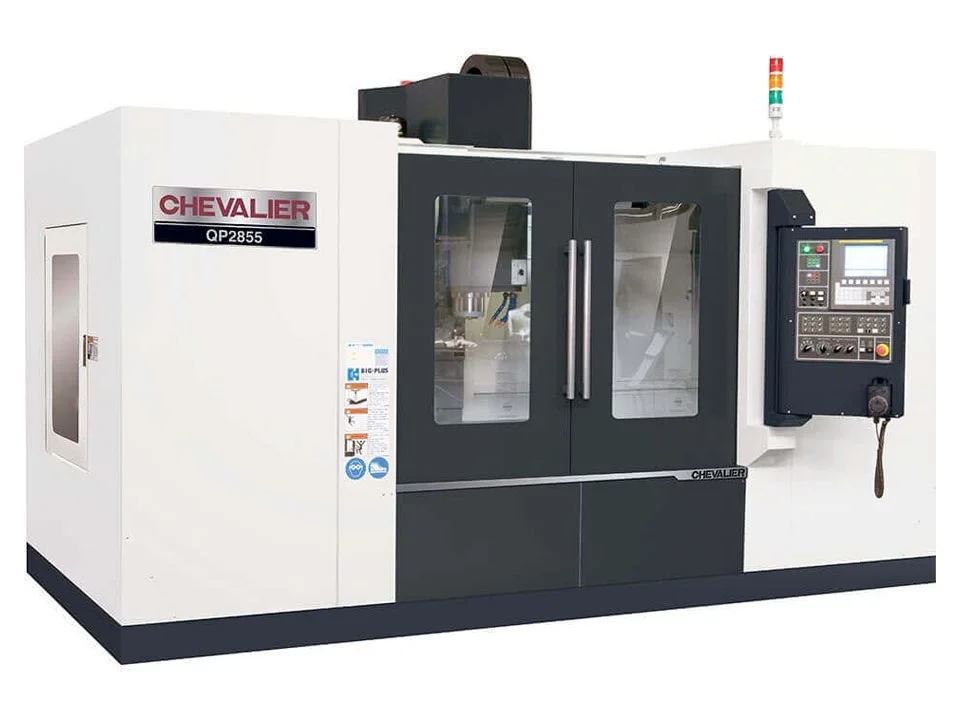

QP-2855 $106,500

HP: 20

RPM: 10,000

Travel: 55” x 27.5” X 24”

Control: Fanuc Oi MF Mold Package

Accessories & Options: CT40, box ways, 24 ATC, CTS prep, 4th axis prep, oil skimmer, chips flush, lift up chips conveyor, (2) internal chip augers, Fanuc Mold Package

LATHES

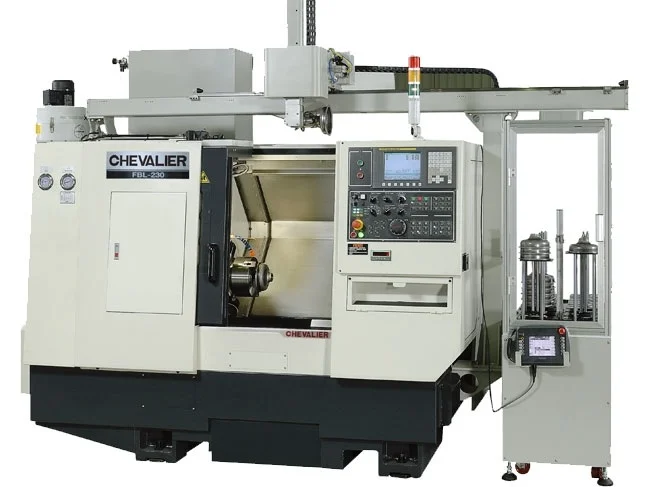

FBL-230 w/ Gantry $135,950

Chuck Bar/Capacity: 8” / 2.0”

Max Swing/ Cutting Diameter/ Length: 21.6”/ 11.8” /16”

HP: 20

RPM: 3,500

Control: Oi-TF

Accessories & Options: Box ways, roller thrust bearings, 10-station servo turret (1” OD shank), 300 PSI high pressure coolant, oil skimmer, conveyor, Gantry loader with 10-station part stacker

FBL-230 $66,800

Chuck Bar/Capacity: 8” / 2.0”

Max Swing/ Cutting Diameter/ Length: 21.6”/ 12.2” /15.9”

HP: 20

RPM: 4,000

Control: Oi-TF

Accessories & Options: Box ways, roller thrust bearings, 12-station servo turret (1” OD shank), manual MT4 tailstock, conveyor

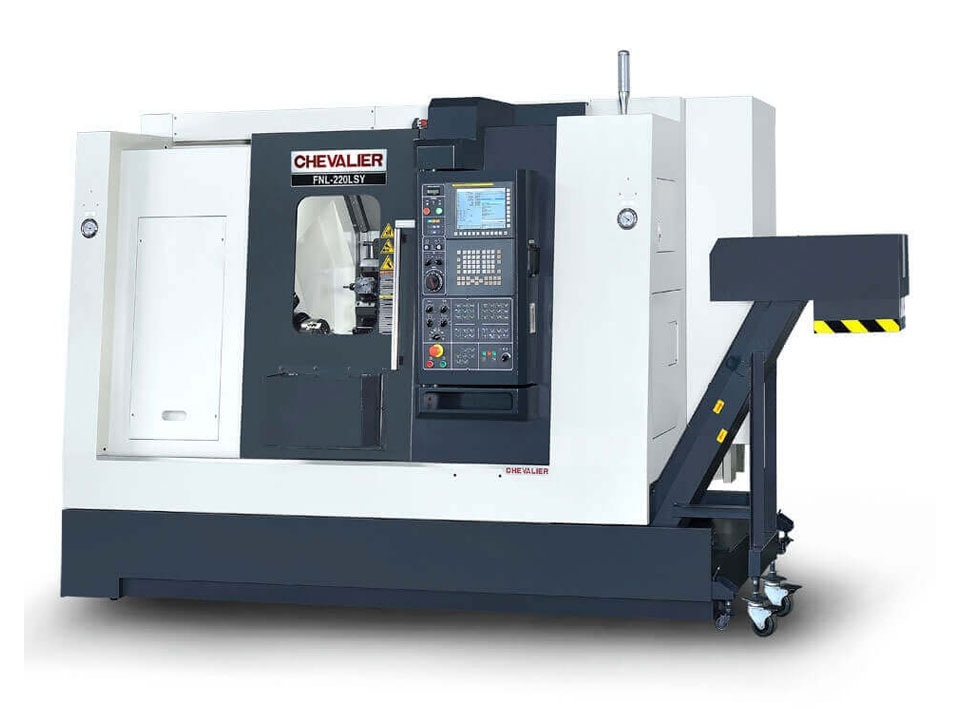

FNL-220LSY $139,500

Chuck Bar/Capacity: 8” main / 6” sub

Max Swing/ Cutting Diameter/ Length: 24.4”/ 10.6” /20.1”

HP: 20

RPM: 4,500

Control: Oi-TF

Accessories & Options: Manual Guide I, BMT45, 12-station live turret, chips conveyor, tool pre-setter, parts catcher

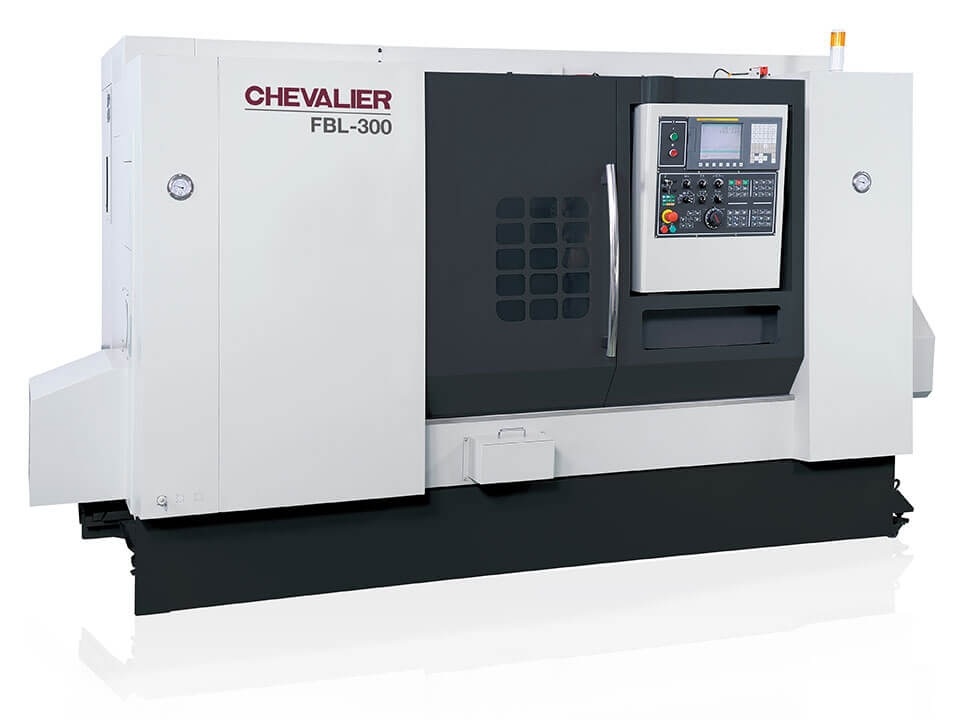

FBL-300L $118,000

Chuck Bar/Capacity: 12” / 3”

Max Swing/ Cutting Diameter/ Length: 25.7”/ 20” /61.2”

HP: 25

RPM: 2,500

Control: Oi-TD

Accessories & Options: Box ways, roller thrust bearings, 12-station servo turret (1” OD shank), oil skimmer, Renishaw tool setter, programmable MT5 tailstock, conveyor

FBL-360BL $179,500

Chuck Bar/Capacity: 15” / 4.5”

Max Swing/ Cutting Diameter/ Length: 30.3”/ 20.8” /78”

HP: 35

RPM: 2,000 2 speed gearbox

Control: Oi-TD

Accessories & Options: Box ways, roller thrust bearings, 12-station turret (1 .25” OD shank), oil skimmer, auto Renishaw tool setter, programmable MT5 tailstock, conveyor

FBL-510C MC $388,740

Chuck Bar/Capacity: 32” / 12.5”

Max Swing/ Cutting Diameter/ Length: 40”/ 37” /40”

HP: 60

RPM: 500 3 speed gearhead

Control: Oi-TD, 10.4” LCD

Accessories & Options: Programmable tailstock, 12-station BMT85 live turret, full C axis, chips conveyor, oil skimmer, front 32” 4-jaw manual chuck, C type manual steady rest, (1) radial live holder, (1) axial live holder, 150 PSI high pressure coolant

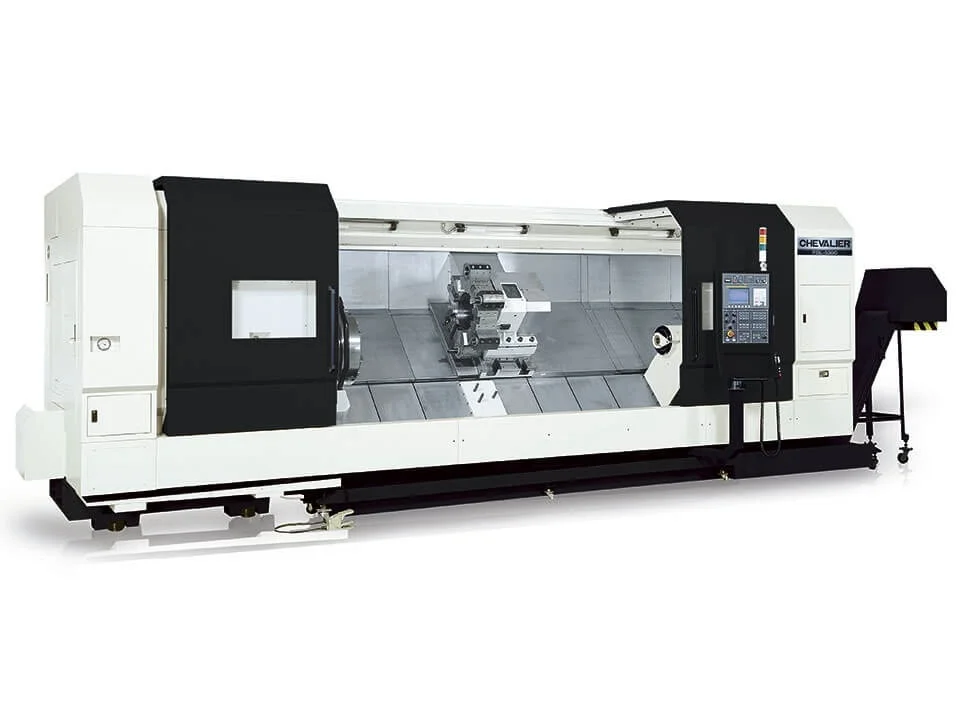

FBL-530C $355,000

Chuck Bar/Capacity: No Chuck 12.5” spindle bore

Max Swing/ Cutting Diameter/ Length: 40”/ 37” /118”

HP: 60

RPM: 500 3 speed gearhead

Control: Oi-TD, 10.4” LCD

Accessories & Options: Slant bed, programmable tailstock, 12-station turret, chips conveyor, oil skimmer

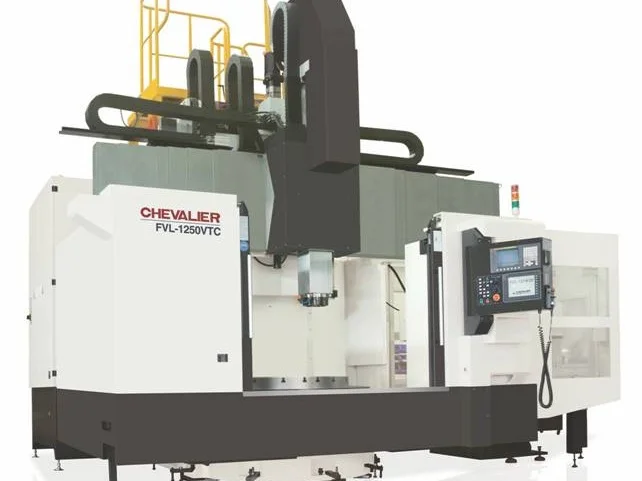

FVL-1250VTC $459,200

Chuck: 50”

Max Swing/ Cutting Diameter/ Height: 63”/ 63” /47.2”

HP: 60

RPM: 300 2 speed gearbox

Control: Oi-TD

Accessories & Options: 12-ATC, auto door, oil skimmer, chip conveyor

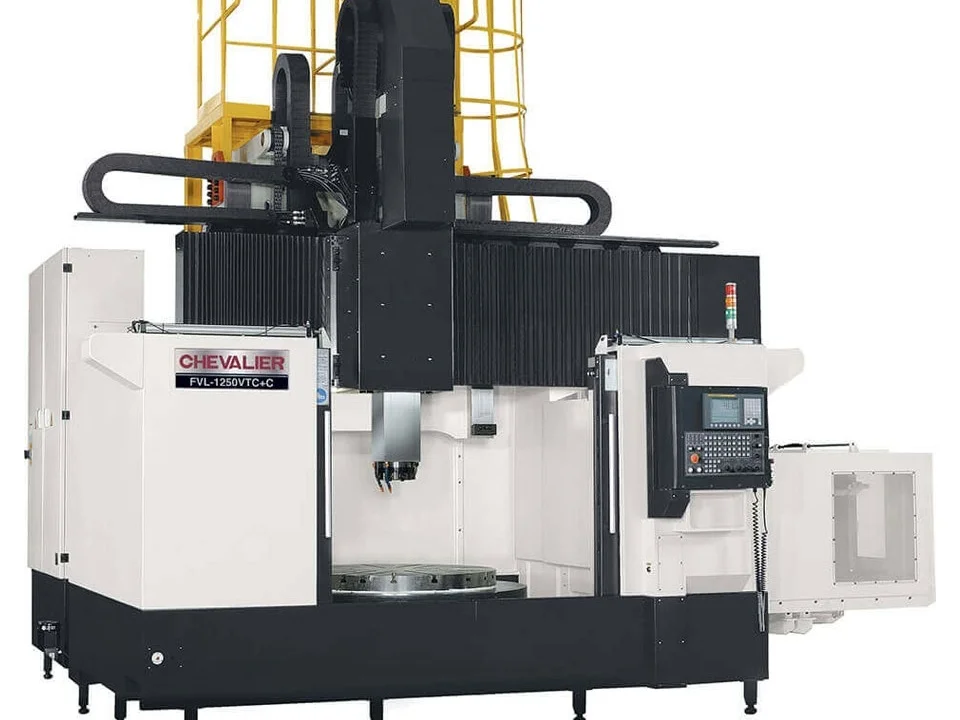

FVL-1250VTC+C $556,500

Chuck: 50”

Max Swing/ Cutting Diameter/ Height: 63”/ 63” /47.2”

HP: 60

RPM: 300 2 speed gearbox

Control: Oi-TD

Accessories & Options: 20-ATC, live tooling with C axis, oil skimmer, 300 PSI CTS, auto door, chip conveyor

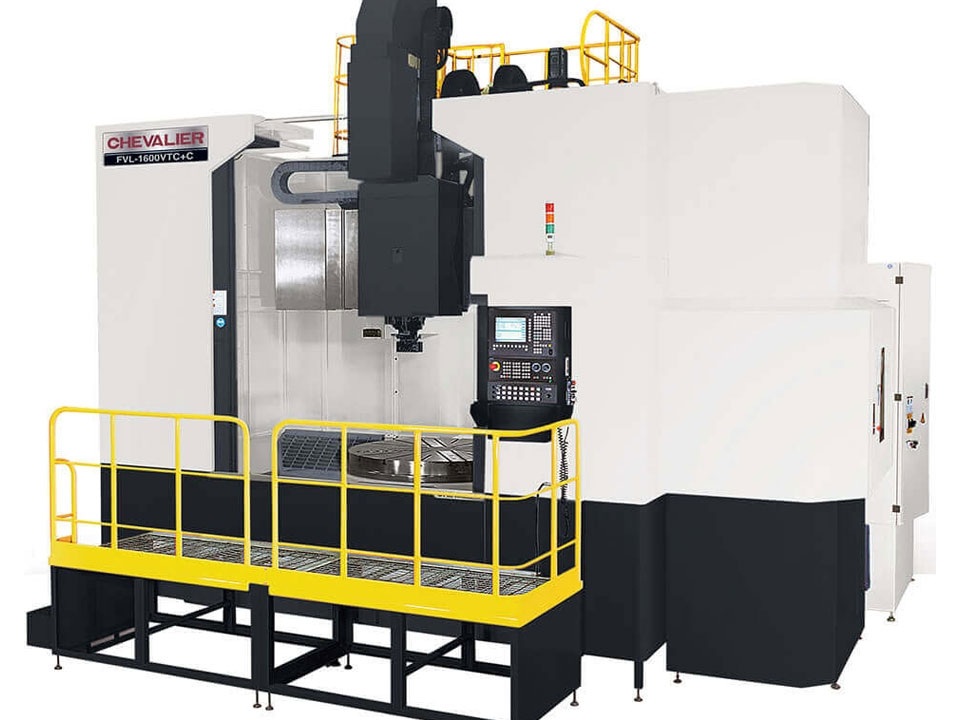

FVL-1600VTC+C $650,500

Chuck: 63”

Max Swing/ Cutting Diameter/ Height: 78.7”/ 78.7” /53”

HP: 60

RPM: 200 2 speed gearbox

Control: Oi-TD

Accessories & Options: 16-ATC, live tooling with C axis, oil skimmer, auto door, chip conveyor

FVL-2000VTC $677,500

Chuck: 78”

Max Swing/ Cutting Diameter/ Height: 98.4”/ 98.4” /63”

HP: 100

RPM: 200 2 speed gearbox

Control: Oi-TD

Accessories & Options: 12 ATC, oil skimmer, auto door, chip conveyor
